Sustainable Drainage Systems (SuDS): Slowing the Flow with Nature

In a wild meadow or ancient woodland, rainwater falls gently into soft earth, soaking into soil and nourishing roots. Streams form slowly, filtered by layers of leaf litter and loam. But in our paved towns and cities, rainwater has a very different journey, hurried into gutters, rushed down pipes, and sent into sewers. We’ve treated rain as a waste to be swiftly removed. The result? Overwhelmed drains, flooded streets, and rivers laced with pollutants and raw sewage when heavy storms hit. Sustainable Drainage Systems, SuDS for short, invite us to reimagine this relationship with rainfall. They ask us to slow down, listen to the rhythm of the rain, and give water space to breathe and wander, much as it would in the wild. In doing so, SuDS help protect our homes and rivers with nature’s own methods.

What Are SuDS and How Do They Work?

SuDS are a philosophy of drainage that mimics natural processes. Instead of rushing rainwater straight into pipes, SuDS capture, store, and slowly release or reuse it – much like a sponge soaking up rain and squeezing it out gently later. In technical terms, SuDS are drainage techniques that “manage rainwater in ways that copy natural processes”. They typically combine several measures in a “management train,” meaning water passes through multiple stages (like vegetation, soil, gravel) that slow the flow and filter out pollution before the water reaches streams or aquifers.

Think of a SuDS scheme as re-creating the sponge that cities lost when concrete replaced soil. In nature, when rain falls on permeable ground, it seeps in, feeds plants, and trickles through soil – getting cleaned and stored as it goes. SuDS brings that idea into our built environment: using gardens, green spaces, and clever design so rain can soak in, slow down, and even support life along the way. The process is often summed up in three simple words: Slow, Store, Filter. By slowing water down, giving it places to store temporarily (like in soil or shallow pools), and filtering it through vegetation and earth, SuDS prevent the sudden floods of runoff that conventional drains cause and ensure cleaner water enters our rivers.

Importantly, if SuDS are well designed for their site, they can be simple to maintain and low-cost in the long run. Just as a healthy wetland or forest manages water with very little human help, a well-crafted SuDS feature works with gravity and biology to quietly do the job in the background. In the sections below, we’ll explore why this approach is so beneficial, and how you can spot (or build) SuDS features in your own community.

From Pipes to Paradigm: Why SuDS Are Better than Conventional Drainage

For over a century, the standard approach to urban drainage was “out of sight, out of mind.” Rainfall was something to be piped away as fast as possible, into distant rivers or sewers. This certainly cleared puddles from our streets quickly, but it also created a legacy of problems. Traditional drains send huge volumes of water into combined sewer systems, which in older cities carry both rain and sewage. In heavy rain, these systems overflow, flushing untreated waste into rivers (a combined sewer overflow, or CSO) and even backing up into homes. The pipes themselves have limited capacity. It’s like everyone in a theatre exiting through one door, too many people and the doorway gets jammed. The result has been flash floods, overwhelmed treatment plants, and polluted waterways whenever storms strike.

SuDS offer a radically different ethos. Instead of treating water as a nuisance, SuDS embrace it as a resource. They “put the sponge back into where we live”, using soils and plants to absorb rain where it falls. By holding onto rainwater (or even reusing it on-site), SuDS relieve the burden on those old sewers. Imagine rainwater dancing slowly through a chain of gardens, ponds, and swales (shallow channels), it takes the scenic route rather than a straight sprint through a pipe. This means far less stormwater rushes into sewers all at once, preventing those dire overflow events. In one London community SuDS project, for example, the annual volume of runoff entering the combined sewer was cut by half after rain gardens and permeable paving were introduced. By easing the pressure on the system, SuDS help keep sewage inside treatment works and out of our rivers.

Environmental benefits are at the heart of the SuDS ethos. Because water travels through natural or semi-natural features (like vegetation, soil, gravel), dirty runoff from roads and roofs gets filtered and cleaned. Oil droplets, heavy metals, and litter get trapped in soil or taken up by plants, instead of flowing straight into streams. At the same time, slowing water down helps it soak into the ground and replenish groundwater, which can mitigate droughts in dry spells. The ethos is very much about working with nature’s cycles, not against them.

SuDS also deliver a bouquet of “multiple benefits” beyond drainage. A concrete culvert rushing with stormwater doesn’t do much for anyone’s happiness; but a tree-lined swale or a flowery rain garden creates green space for people and urban wildlife alike. Well-designed SuDS can enhance local amenity, making places more attractive to live and play. They bring birds, butterflies, and wildflowers into our built environment, effectively weaving pockets of nature into the urban fabric. Research shows SuDS improve water quality and increase biodiversity, providing habitats for wildlife in the process. And there are other perks: cooling the urban heat in summer (through water evaporation and shading by greenery), and even insulating buildings (green roofs are great at that). All these benefits come while keeping our feet drier and our rivers cleaner.

Let’s summarise a few key advantages of SuDS over conventional drainage:

Reduced flood risk: By holding back and using rainwater on-site, SuDS prevent the sudden surge of runoff that causes flash floods. Water is released slowly, if at all, after a storm, giving downstream drains and streams a chance to cope.
Cleaner water: SuDS features naturally filter polluted runoff. Plants, soil, and gravel trap sediments and break down contaminants, so the water that does flow out is much cleaner than what went in.
Less sewer overflow: With more rain soaking into the ground or held in ponds, combined sewers receive far less volume, greatly reducing those nasty overflow events where sewage would spill to rivers.
Green beauty and amenity: Instead of hidden pipes, we get visible green spaces, rain gardens, ponds, wetlands, that people can enjoy. SuDS designs often double as community parks, playgrounds or attractive landscaping, adding value and beauty to developments.
Biodiversity and wellbeing: SuDS support trees, flowers and wetlands that provide habitats for birds, bees, dragonflies and more. Green spaces have proven benefits for mental health too; a win-win for people and nature.
Cost savings and resilience: In many cases, SuDS can be cheaper to build and maintain than complex underground pipe systems. For instance, an evaluation of a Cambridgeshire housing SuDS found it was about 10% cheaper to install than conventional drainage and saves each household about £30 per year in sewer charges. By managing water on-site, communities also become more resilient to climate extremes, from heavy storms to droughts.

In essence, SuDS represent a shift from a grey, hard-engineering approach to a green, ecosystem approach. It’s about making space for water in our urban landscape, slowing it down to a gentle wander, rather than shooting it down a black hole. This ethos of working with natural processes yields a safer, greener, and more pleasant environment for everyone.

Slowing the Flow and Protecting Our Rivers

One of the most urgent reasons communities are turning to SuDS is to combat sewer overflows and water pollution. Many towns (especially in the UK) still rely on combined sewers, where rainwater from drains mixes with household sewage. When heavy rainfall hits, these systems can overflow, causing diluted sewage to spill into rivers or even up through manholes. You might have seen grim news about storm overflows polluting rivers and beaches after rain. By reducing the amount and speed of water entering these sewers, SuDS provide a crucial relief valve.

SuDS features like soakaways, permeable pavements, and green roofs effectively keep a lot of rainwater out of the sewers altogether. For example, a green roof on a home or shed absorbs a significant portion of the rain that falls on it, in some cases up to 80–90% of annual rainfall can be retained by a well-designed green roof. That means all that water never even reaches the gutter, let alone the sewer. Permeable driveways similarly let rain soak into the ground beneath instead of funnelling it into the street drains.

Even when SuDS do connect to sewers or streams, they delay the water’s journey. A detention basin (basically a dry pond that fills in a storm) can hold thousands of litres of runoff and release it slowly over hours or days. This trickle-out effect ensures that the local sewer or watercourse isn’t hit with the whole storm’s water all at once. It’s akin to traffic control for water, metering the flow so nothing gets overwhelmed. In Bridget Joyce Square (a SuDS scheme we’ll discuss later), smart flow controls were used to hold water on-site longer, so that combined sewer overflows downstream are avoided even during heavy rain.

Moreover, by letting water soak into soils (infiltration), SuDS help recharge groundwater and feed the baseflows of streams in dry weather. Instead of a big flush then nothing, water percolates slowly, which can keep streams flowing more steadily and reduce the severity of droughts for ecosystems. This gentle seepage also prevents the sudden erosion that fast runoff causes in riverbanks.

Another protective aspect of SuDS is how they treat runoff pollution. Urban runoff can contain oil, metal particles from car brake pads, microplastics, excess nutrients, and all manner of pollutants that collect on roads and roofs. In a traditional system, the first foul flush of a storm carries all that straight into the nearest river. SuDS intervene in this process. For instance, a vegetated swale can remove pollutants by filtering sediments and allowing microbes and plant roots to break down contaminants. Wetland areas or rain garden soils can uptake nutrients and trap heavy metals. Research and monitoring have shown that SuDS significantly improve the quality of water leaving a site compared to conventional drainage. Cleaner water in turn means healthier rivers with more oxygen and less algal bloom; better for fish, insects, and those of us who enjoy a riverside walk.

Finally, by addressing both water quantity and quality at the source, SuDS reduce the burden on downstream water treatment infrastructure. If less rainwater enters the sewer, sewage treatment works operate more effectively (since they’re not diluted and overwhelmed). And if the water that does reach them or the environment is cleaner, that’s less strain on purification processes and ecosystems. In short, SuDS help break the vicious cycle of urban water problems and replace it with a virtuous cycle: slower flows, cleaner flows, and water working for us rather than against us.

Now that we’ve covered the why, let’s explore the “tools” of SuDS, the features that you might see (or build) that make all this happen. From humble rain gardens to grassy swales, green roofs to permeable paving, each plays a role in this quiet revolution of rainwater management.

SuDS Features: Nature’s Toolkit for Taming Rain

SuDS isn’t a single product or thing, it’s a collection of design features and approaches. Many SuDS components are quite simple and visibly green, like planted areas or grassy ditches. Others are hidden below ground. In this section, we introduce some of the key SuDS features and explain what they are, how they help, and how to look after them in plain terms. The wonderful thing is that homeowners can implement many of these features themselves in gardens or driveways, while developers can include them in new builds. Let’s unpack the toolkit:

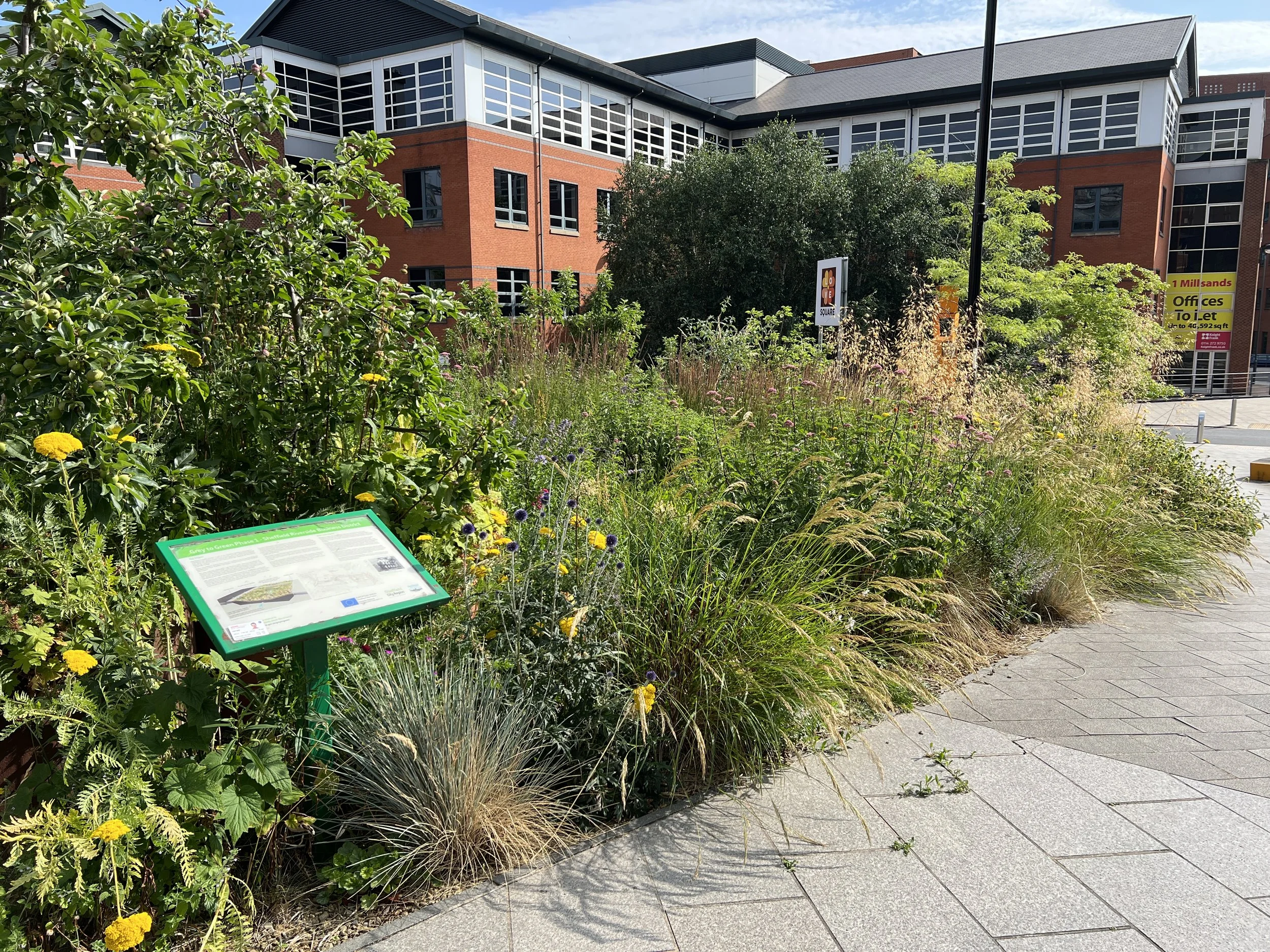

Rain Gardens

Put simply, a rain garden is a shallow depression in the ground, like a gentle dip or basin, that collects rainwater runoff from hard surfaces (for example, from your roof downpipe or driveway). Unlike a regular flowerbed, a rain garden is designed to temporarily hold water (usually for a day or two at most) and then let it soak into the soil. It’s typically planted with hardy flowers, grasses, or shrubs that don’t mind getting their “feet” wet occasionally, but can also handle dry spells. You’ll often see more water-loving plants in the deeper center and drought-tolerant ones around the edges; a beautiful gradient of species adapted to wet and dry.

When rain comes, water flows via a little channel or pipe from the downspout into the rain garden. Instead of pooling on your patio or rushing to the street, it fills the garden bed, creating a temporary puddle that can be a few inches deep. Then the magic begins: the water slowly soaks into the soil (infiltration), getting filtered by plant roots and microbes which cleanse pollutants (like any oils or grime from your roof) in the process. Within 24–48 hours, a well-designed rain garden will have drained completely, ready for the next rain. In essence, it’s a mini stormwater oasis that turns a rush of runoff into a nourishing drink for plants.

Benefits: Rain gardens are unsung heroes for both homeowners and the environment. They can absorb up to 30% more water than an equivalent lawn area, meaning they’re superb at preventing puddles and ponding. By catching water, they reduce flooding and relieve stress on drains. They also filter out pollution, the plants and soil in a rain garden trap sediments and take up things like nitrates or phosphates, so the water that percolates downward is cleaner. Plus, a rain garden is literally a garden, it can be a gorgeous, blooming part of your landscaping. Filled with native wildflowers or ornamentals, it will attract birds, butterflies, and beneficial insects, adding to your local biodiversity and joy of your yard. It’s essentially a low-maintenance, wildlife-friendly flower bed that also solves drainage issues. Lastly, having a rain garden can avoid the need for more expensive underground drainage like soakaways on your property.

Maintenance: One great thing about rain gardens is that, after establishment, they’re relatively low maintenance. The deep-rooted plants typically used can thrive on rainwater alone once mature, so little to no watering is needed after the first year. Maintenance mostly involves what any garden needs: occasional weeding, especially in the early days while plants fill in. You’d also remove any debris or silt that might collect where water enters (for example, leaves clogging the inlet). Perhaps in autumn you cut back dead stems, if you like a tidy look (or leave them for wildlife habitat until spring). If you notice water isn’t draining within a day or two, you might need to loosen the soil or check for compaction. But generally, a rain garden takes care of itself with natural rainfall. Its plants happily slurp up the stormwater and then wait patiently for the next shower.

Swales (Shallow Drainage Channels)

A swale is one of the simplest SuDS features: essentially, it’s a shallow, vegetated channel or ditch that conveys water. If you’ve ever seen a shallow grassy trench running alongside a road or through a park, that might have been a swale. Unlike a deep concrete drain or trench, a swale is broad, gentle-sided, and often lined with grass or wildflowers rather than hard surfaces. Swales are designed to guide rainwater through the landscape slowly, they give water room to spread out and seep in as it travels.

Picture a swale as a long, grassy hollow. During normal conditions it’s dry or just mildly damp. When heavy rain comes, water flows into the swale (for example, from a roadway or car park) instead of into a pipe. Because the swale is broad and shallow, the water forms a small stream that moves gradually along it, almost like how a natural stream might form after rain. As it does so, a few things happen: First, the roughness of the grass and soil slows the water down, preventing erosive gushes. Second, the water soaks into the soil beneath the swale (if the ground allows), recharging groundwater. Third, the vegetation acts as a filter for pollutants, sediment and particles settle out, and plant roots take up some of the nutrients and bacteria break down the oils, cleaning the water. By the time the runoff reaches the end of the swale (which might empty into a pond or a drain), it’s moving slower and is much cleaner than when it entered.

Swales are wonderfully versatile. They can run alongside roads, through housing estates, or across public open spaces. In new developments, you might see swales instead of kerbs and gullies – a grassy margin that handles the rainwater. In existing areas, sometimes a roadside verge is reshaped into a swale by creating a dip and adding openings in the curb for water to enter. They can be landscaped to look attractive, with wildflower mixes or meadow grass, so they don’t appear like an “ditch” in the negative sense, but more like a linear wetland garden when wet and a regular green swath when dry.

Benefits: Swales are prized for being simple, natural, and cost-effective. They have a low construction cost (often just soil work and seeding) and can sometimes eliminate the need for pipes entirely in a drainage scheme. By slowing runoff, they reduce flood peaks and allow water to soak into the ground, lessening the volume that has to be handled downstream. They are also great at removing urban pollutants, studies show swales filter out sediments and associated pollutants effectively. Because they’re at the surface, any pollutants or blockages (like litter or leaves) are visible and easily removed, unlike hidden pipes which can clog unseen. Swales also contribute to greening the area: they can be incorporated into landscaping, serving double duty as greenery and even as wildlife corridors. A wildflower swale can support insects and provide visual interest, boosting local ecology and amenity. Perhaps one of the biggest benefits is ease of maintenance and integration, swales can be maintained along with regular landscape care (mowing, etc.) and don’t require specialised underground work.

Maintenance: A swale’s maintenance is not much different from caring for a lawn or roadside verge. The main tasks are: occasional mowing or cutting of vegetation (to keep grass from getting too high or woody; typically a few times a year, depending on desired look); removing litter and debris that wash into the swale; and keeping the inlets/outlets clear of obstructions (for example, where water enters the swale from a road, ensure leaves or sediment haven’t built up). Every so often, if certain spots have collected a lot of sediment (like where the water first enters), you might need to rake or shovel out the excess soil to maintain the swale’s shape. It’s also good practice to reseed any bare patches of grass to prevent erosion. Importantly, because swales are shallow and vegetated, you can see if something’s wrong at a glance – if you notice standing water for too long or eroded channels, that’s a cue to do a touch-up (like regrading a bit or replanting). In summary, if you can maintain a lawn or garden bed, you can maintain a swale. It’s a very accessible, low-tech solution.

Permeable Paving

Not all SuDS are gardens and greenery, some look just like ordinary hard surfaces but hide a secret: they let the rain through. Permeable paving refers to driveways, streets, or patios built with materials that allow water to soak down rather than run off. Imagine a driveway that drinks the rain instead of sending it streaming to the gutter. This can be achieved with special permeable pavers, porous concrete/asphalt, or even gravel systems. The key is usually that there are small gaps or porous spaces in the surface, and beneath the surface is a stone aggregate layer that acts as a reservoir.

In a typical permeable paved driveway, for example, you might have interlocking concrete blocks with tiny gaps filled with grit between them. When it rains, water flows into these gaps (or through porous pavers) and into a crushed stone layer underneath. That stone layer has lots of voids (spaces) which can hold the water temporarily, like an underground sponge. From there, the water slowly infiltrates into the soil below, or sometimes drains out through an outlet pipe over time. In either case, the water is stored and released gradually, rather than sheeting off immediately. To the eye, the driveway might look almost the same as traditional block paving, except you’ll notice slightly wider joints or a bit of grass/gravels in between blocks in some designs. There are also plastic grid systems that can be filled with gravel or even grass to create a stable but water-permeable surface (often used for overflow parking or driveways).

Benefits: Permeable paving transforms surfaces from being runoff generators into runoff managers. A good permeable paving system can absorb rain from its own surface plus water from adjacent areas, often handling double its area in rainfall catchment. This means if you pave your front garden with permeable blocks, you’re not contributing to street flooding; in fact, you might be taking some water that would’ve gone to the street and dealing with it on-site. The benefit to the wider community is significant: if many driveways and car parks are permeable, the whole neighborhood sees less stormwater rushing into drains. For homeowners, using permeable paving can help prevent puddles and ice patches on your drive (since water isn’t lingering on the surface). It’s also often compliant with regulations, notably, in the UK, you generally don’t need planning permission for a new driveway if it’s permeable or drains to a SuDS feature, whereas you do if it’s impermeable concrete over 5m². So permeable paving not only helps drainage, it can save you the red tape. Additionally, permeable surfaces can trap pollutants like oils and heavy metals in the sub-base before they reach groundwater or streams, giving some water quality improvement (microbes in the aggregate can break down oil residues over time). The airy stone bed under permeable pavement can also help nearby trees by providing them extra rooting space and water, so you often see it used in green city schemes to support street trees.

Maintenance: The enemy of permeable paving is clogging, when the pores or gaps fill up with dirt or debris, water can’t get through as well. So maintenance is all about keeping those gaps open. In practice, this means periodically sweeping the surface to clear off leaves, soil, or sand, and occasionally vacuuming or power-washing the paving to suck out any material lodged in the joints. For a driveway, simply sweeping it clean every few weeks (more frequently in autumn when leaves fall) and ensuring there isn’t a buildup of mud will go a long way. If weeds start growing in the joints, pull them out to prevent them trapping more silt (having good joint filler material like gravel helps discourage weeds). Every few years, some owners hire a professional street vacuum or use a pressure washer to really flush and refresh the pores, especially if they notice water pooling. It’s also wise to avoid stockpiling soil, sand, or other fine materials on permeable surfaces (for example, if you’re doing some construction, cover the permeable pavement so it doesn’t get overloaded with fine dust). If maintained, a permeable driveway will last as long as a conventional one and keep draining well. A quick check during a rainstorm is the best test: if you see water pooling or running off, time to clean those pores; if it’s disappearing downward even in heavy rain, your paving is doing its job!

Green Roofs

A green roof is perhaps one of the most visually striking SuDS features, it transforms the very top of a building into a living garden. On a green roof, a special layered system allows plants (usually hardy sedums, grasses, or wildflowers) to grow on the roof surface, creating a vegetated blanket instead of conventional roofing felt or tiles. These roofs are built with layers including a waterproof membrane, soil or growing medium, and often a drainage layer, all engineered so that the building stays dry but the plants can thrive.

How does a green roof manage water? Think of it as putting a sponge and garden on your roof. When it rains, the water first hits the plant leaves and soil. A significant portion of that water is held within the soil and taken up by the plants. Later, the plants release moisture back to the atmosphere through evapotranspiration (like leaves sweating water out, which cools the area). The rest of the water slowly percolates through the soil and is captured by a drainage layer, which typically lets it drip out at a controlled rate into the gutter system. Compared to a normal roof where almost 100% of rain immediately becomes runoff, a green roof might retain 50–80% of the rainfall even in a large storm – and in light rains, it may absorb everything with no runoff at all. Over a year, green roofs can drastically cut the total volume of water coming off a building. In fact, some studies (and practical examples) have shown up to 90% reduction in runoff from a building by using a green roof, especially for smaller rain events.

Green roofs come in two main flavors: extensive (shallow, lightweight, low-maintenance, often using sedums or mosses) and intensive (deeper soil, can support shrubs or even trees, like a rooftop park). Most homeowners and retrofits use extensive green roofs, which are only a few inches thick in substrate and add relatively little weight. These can often be put on sheds, garages, extensions, or even the main house (with professional guidance to check structural support).

Benefits: Green roofs offer a cornucopia of benefits. They retain and detain rainwater, as mentioned, which cuts down urban runoff and eases sewer loads. But that’s just the start. By keeping water on the roof and evaporating much of it, green roofs also regulate building temperature, they keep buildings cooler in summer (the evaporation provides cooling, and the soil layer insulates against heat) and they add insulation in winter. This can reduce energy bills for cooling and heating. They also protect the roof membrane by shielding it from UV rays and extreme temperature swings, which means the roof lasts much longer (often extending roof life by twofold is cited). Moreover, green roofs help combat the urban heat island effect, a city with many green roofs will be cooler and have better air quality, because plants absorb sunlight and cool the air, instead of black roofs radiating heat. On the ecological side, even a thin sedum roof provides habitat for insects (especially butterflies and bees when flowering) and even some birds; it’s not uncommon to see bees foraging on city green roofs or birds pecking for seeds. Green roofs basically create new green space in the footprint of the building, which is wonderful in dense urban areas where ground space is limited. They also absorb carbon and air pollutants to a degree, contributing to cleaner air.

Psychologically and aesthetically, a green roof can be a delight. Imagine looking out an upper window to see a tapestry of wildflowers and grasses swaying, instead of bare shingles. Some offices and apartments use visible green roofs to improve views and even allow rooftop access for people to enjoy a garden in the sky.

Maintenance: The maintenance of a green roof depends on its type. Extensive green roofs (shallow, sedum-based)are designed to be very low-maintenance, almost self-sustaining. They typically need a check-up once or twice a year. Maintenance tasks include: removing any unwanted weeds or tree seedlings that might have blown in (you don’t want roots penetrating the membrane), checking that the drainage outlets aren’t blocked by debris, and perhaps trimming or feeding the plants if needed. Some sedum roofs in Europe have thrived for decades with minimal care, just the occasional fertilisation to keep plants healthy. Intensive green roofs (deeper soil, like roof gardens) require similar maintenance to a normal garden, regular watering (unless designed with drought-tolerant plants and irrigation), pruning, weeding, etc., so those are more work and usually only on larger buildings with maintenance staff.

For a homeowner with a small green roof on an extension or shed, maintenance might mean going up in spring and autumn to ensure all is well: clear any leaves (especially if near trees), weed out aggressive plants, and check the waterproof membrane edges and flashings. If there’s a dry spell, a young extensive green roof might need a bit of watering to help the plants along (once established, sedums can survive drought by going dormant). Importantly, safety first, if it’s your house roof, you’ll need to be able to access it safely or hire someone. But for a modest one-storey extension, it’s usually easy enough.

Overall, a green roof’s maintenance is modest and the benefits extensive (pun intended). It’s a living thing, so tending to it occasionally will keep it flourishing. Many people find it enjoyable, your roof becomes another small garden to cherish, with the novelty that it’s elevated and often self-seeded with surprising blooms brought by the wind or birds.

Soakaways

A soakaway is a more old-fashioned term, but it remains a SuDS staple for houses. It’s basically an underground pit or structure filled with porous material (rubble, gravel, or special crates) that collects water and lets it gradually soak into the ground. Think of a soakaway as a big, hidden sump that returns water to the earth. If you have gutter downpipes that don’t connect to a sewer, they likely go to a soakaway in your garden.

Traditionally, a soakaway might be a hole in the ground 1–2 metres deep, filled with hardcore or rubble. Modern soakaways often use plastic modular crates wrapped in geotextile – these create a void space for water but keep soil out. When it rains, water (usually from roof gutters or drives) is piped into the soakaway. The water then sits in this underground reservoir and slowly infiltrates into the surrounding soil over time. Because the soakaway is buried, you don’t see water on the surface – it’s all happening below your lawn or patio. As long as the soil in your area drains reasonably (e.g. not heavy clay), a soakaway will steadily disperse even large volumes of water and can empty out between rains.

Benefits: Soakaways are great for dealing with water right where it falls on your property, eliminating runoff. By sending roof water back into the ground, you both reduce pressure on public drains and help recharge groundwater. They are out of sight and don’t take up usable space in the garden (after installation, you can garden or even pave over the area, as long as you remember not to build something heavy directly above without design considerations). Soakaways can handle a lot of water if designed well – a single soakaway can serve an average roof. They’re relatively inexpensive and don’t require energy or complex parts – just gravity doing the work. In essence, a soakaway prevents localised flooding by providing a personal drain back to the soil. If every house in a neighborhood has proper soakaways and doesn’t pipe water to the street, that neighborhood will have far less surface water flooding. Soakaways also filter water naturally to some extent (as water percolates through soil, contaminants get filtered/adsorbed), improving the quality of what reaches the water table.

Maintenance: A soakaway itself, once in the ground, is generally maintenance-free for many years. The key is to prevent silt and debris from reaching it, because clogging is the main threat. That means the feeder pipes from your gutters should have gutters guards or filters to keep out leaves, and possibly a silt trap in a downpipe or inspection chamber. Every year or so, it’s wise to clean your gutters and any catchpits – that’s standard house maintenance. If you notice water starting to overflow from a gutter during storms, it might mean the soakaway is partially silted. Some soakaways eventually clog after, say, 20-30 years if a lot of fine clay or organic matter has accumulated; at that point, they might need renewal (which would mean digging a new pit or cleaning the old one if possible). But many homes have soakaways functioning for decades without issue, especially on sandy or loamy ground. In general, keeping your gutters clean is the main thing you can do to ensure your soakaway lives a long, healthy life. Unlike visible SuDS features, you can’t directly see a soakaway working – but if during heavy rain you don’t see water pooling around your downpipes or yard, it’s a sign your hidden soakaway is doing its job well.

Detention Basins and Ponds

These are the larger SuDS features often found at the neighborhood or development scale. A detention basin is basically a shallow depression or basin in the land that is usually dry (covered in grass) but is built to fill with water during heavy rain, acting as a temporary pond. After the storm, the basin slowly releases or infiltrates the stored water, emptying out until it’s dry again. In contrast, a retention pond (also just called a SuDS pond or wet pond) is similar but holds water permanently – so it’s an actual pond or small lake all the time, with extra capacity to hold more during storms. Both serve to catch big bursts of runoff that might otherwise cause flooding.

Detention basins often just look like a wide grassy dip or a low-lying field. They are usually gently sloped for safety and might double as recreation space – for example, a playing field or park that very occasionally gets wet in one corner after extreme rain. Many housing developments build a basin at the lowest point of the site to collect water from swales, pipes, and overland flow. These basins are sized to handle a design storm (often a 1-in-30 or 1-in-100 year storm). When a huge downpour comes, water spills into the basin and ponds up instead of flooding houses. The basin holds it, then over hours or a day, a controlled outlet (like a small orifice or weir) drains the water out slowly to a nearby watercourse or sewer at a rate that the system can handle. If the soil is permeable, some water might just soak into the ground from the basin too.

Retention ponds are wet cousins of basins – they keep a pool of water all the time, which provides a lovely habitat for ducks, frogs, and aquatic plants. During a storm, the water level in the pond rises, using up free board space, and then recedes. Often these ponds have an outlet structure that maintains the normal water level and regulates the high flow. Retention ponds are an attractive feature in many new communities – like a little village lake that also serves an engineering purpose.

Benefits: Detention basins and ponds provide big-volume storage to prevent downstream flooding. They can be thought of as safety valves for when all the smaller SuDS features (like swales and permeable pavements) have done their part and there’s still excess water. By catching peak flows, they protect streams and storm sewers from being overwhelmed. They also allow sediments to settle out – any muddy water that flows in will deposit silt in the basin rather than clogging pipes or streams, thus improving water quality (many basins and ponds are designed to treat water via sedimentation and even biological uptake in permanent pools or wetland fringes).

When dry, detention basins can be multi-use spaces – for instance, a basin in a park can be a sports field or dog park during normal conditions. This dual use is efficient for land use planning. Wet ponds, on the other hand, become amenities and biodiversity havens. A retention pond with reeds and willow trees around it can significantly boost local wildlife: birds come for nesting, amphibians breed, and dragonflies buzz around. It becomes a small nature reserve for the community. Both basins and ponds tend to increase the aesthetic appeal of an area – people enjoy water and open space. Studies have shown that homes near attractive water features often have increased property value and certainly improved wellbeing for residents who have a nice view or walking spot.

Maintenance: Detention basins are fairly straightforward to maintain. In dry basins, the tasks include mowing the grass regularly (to keep it usable and prevent woody vegetation unless intentionally planted), and checking/clearing the inlets and outlets of any debris or blockage. After a number of years, basins may accumulate sediment (especially at the inlet points), so periodic silt removal might be needed – basically digging out the sediment to restore volume capacity, perhaps every 5–10 years depending on how much erosion upstream. It’s also important to inspect the embankments or any control structures (like a small dam, berm or concrete weir at the outlet) to ensure they’re sound and not eroding or cracking.

Retention ponds (wet ponds) require some additional care: managing aquatic plants (sometimes the pond can get choked with algae or invasive weeds, so occasional cutting or treatment is needed), ensuring banks are stable (planting or reinforcing if erosion occurs from water level fluctuations), and similarly dredging out accumulated sediment every so often (every 5–15 years, ponds can lose depth to sediment). One thing to watch is mosquitoes – however, if a pond is designed well with varying depth and supports fish or other predators, mosquito larvae usually don’t become a nuisance. Maintenance crews might introduce fish or use aerators if needed to control that.

Community-wise, safety maintenance is important: if the basin or pond is in a public area, you’d ensure signage if needed and perhaps shallow slopes or fences to prevent accidents (though many SuDS ponds have natural safety by design, like very gradual side slopes and shallow fringes). Local authorities or management companies typically handle large basins and ponds, not individual homeowners, since these are often serving an entire area.

In summary, basins and ponds are larger-scale SuDS that require periodic upkeep but offer huge benefits in resilience and environmental enhancement. Many newer developments in the UK incorporate such features – next time you pass a new housing estate with a central green or pond, see if it’s actually a clever SuDS in action.

Building SuDS into New Developments

SuDS work best when they’re planned from the beginning of a development. In the past, drainage was an afterthought – engineers would design pipe networks once everything else was laid out. With SuDS, the idea is to integrate drainage with the landscape design from day one. This means a new housing estate might be designed around a leafy swale network and a central wetland, or a commercial site might include a green roof and permeable car park as fundamental features.

In the UK, policy has increasingly pushed for SuDS in new developments. Since 2015, planning rules require that major developments include sustainable drainage unless proven inappropriate, and there should be maintenance plans for the lifetime of the development. In practice, that means if someone’s building, say, 50 new homes, they can’t just connect all the drains to the nearest sewer and call it a day. They need to show how runoff will be managed on-site with SuDS features. Councils and developers have risen to the challenge with lots of creative designs.

For example, new residential areas might have permeable paving on all driveways and even roads, so that every street is handling its own rainfall. They might replace standard street gutters with tree pits and rain gardens at intervals – so the curb has inlets where water flows off the road into planted areas. Parking lots can be built with permeable surfacing or include detention basins at the edges that look like landscaped ponds. Green spaces are multi-purpose: a kids’ play field might double as a detention basin in a once-in-a-decade storm, gently holding water away from houses. The concept of the “management train” is used, where water goes from roof to water butt to rain garden to swale to pond, sequentially slowing and treating it at each step. This holistic approach means a new development can often achieve zero increase in runoff compared to the greenfield (pre-developed) state – a key goal in sustainable planning.

Designers also consider life on the development: SuDS features are placed where they enhance the quality of life. A green corridor with swales can be a nice walking path for residents. A pond can be a focus point for community recreation. Safety and maintenance responsibilities are planned in too – for instance, making sure there’s an entity (like a management company or the local authority via a commuted sum) that will maintain the SuDS, and designing with gentle slopes, fences, or shallow depths to keep things safe for the public.

Crucially, many new developments treat surface water as an amenity, not just a liability. Instead of hiding water, they celebrate it. This is a bit of a return to older times when towns had commons and ponds. Now, even shopping centers might have bioswales in parking lots or living roofs as part of their branding for green credentials.

A success story often cited is that SuDS-rich developments can be cost-competitive or cheaper than conventional ones, because you save on underground pipes and big retention tanks by using natural features. For instance, the Lamb Drove development in Cambourne, Cambridgeshire incorporated swales, permeable roads, green roofs and a pond for 35 homes. It demonstrated not only effective drainage and community acceptance, but did so at around 10% lower cost than a traditional pipe solution. Residents there enjoy green spaces and wildlife that a pipe-and-grate system would never have provided.

So, in new developments, the mantra is “design for water”: make the handling of rain an integral part of the layout. Use the natural topography – maybe there’s a low area perfect for a pond. Keep soil porous where you can (minimize paving) and use green infrastructure to intercept flows. The result is neighborhoods that are more resilient to climate change, more beautiful, and often popular with buyers who appreciate the greenery and flood security.

Retrofitting SuDS in Existing Homes and Gardens

What if you’re not building a brand new estate, but living in an older home or a street that wasn’t designed with SuDS? The good news is you can still retrofit many SuDS measures at both the household and community level. Homeowners have quite a few options to turn their property into a mini SuDS and help “slow the flow” for the whole neighborhood.

At the individual home level, here are some retrofit ideas:

Install a water butt (or several): This is the simplest catch-and-use system. Attach a water butt to your downpipe to collect rainwater from the roof. This not only reduces runoff (each standard butt can hold ~200 liters per rain event), but also provides free water for your garden plants during dry spells. If you have space, you can connect multiple barrels or a larger cistern. Some UK councils even offer discounts on water butts to encourage rainwater harvesting.
Create a rain garden or soakaway: Instead of that always-soggy patch of lawn, dig a shallow depression and make a rain garden. You can direct one or more downpipes into it by cutting the downpipe and adding a diverter that channels water via a gravel-filled channel or pipe to your garden bed. Choose hardy native plants that enjoy wet feet now and then (irises, marsh marigold, sedges, etc.). If soil drainage is poor, you could dig a trench or pit and fill with gravel as a soakaway, then cover with soil and plant – combining a soakaway with a planted top makes a concealed rain garden that percolates well. A well-placed rain garden will catch roof or patio runoff and prevent it from just pouring onto driveways or roads.
Use permeable materials when redoing paving: If you are planning to repave your driveway or patio, opt for permeable paving or gravel. For driveways, there are permeable block pavers that look great and meet regulations (in fact, using those saves you the hassle of applying for planning permission for new paving over 5m², which is required for non-permeable surfacing). If your existing drive is concrete or asphalt and often sheds water to the street, consider retrofitting by drilling small holes and adding a gravel or soil bed in sections, or simply converting part of it to garden. Some people remove a strip of pavement along the edges and plant it, allowing water to run off into those green strips instead of directly to the sidewalk.
Green your roof (where possible): While retrofitting a green roof on an existing house is more involved, it can be done on smaller structures with ease. For example, you could install a green roof on a shed, garage, carport, or extension. Many DIY green roof kits exist for sheds – usually involving a strong plywood base, a root-proof membrane, some lightweight soil and sedum or wildflower mats. This is a lovely way to add SuDS capacity and insulation. Even a shed roof of 10 m² with a green roof will significantly reduce and delay runoff from that surface.
Add a French drain or infiltration trench: If you have an area where water accumulates, like along the edge of your lawn or at the bottom of gutter downpipes, you can dig a trench, line it with geotextile, and fill it with gravel to make an infiltration trench. This is basically a linear soakaway that can hold and dissipate water into the ground. It can be disguised under a narrow flower border or covered with decorative stone. This helps drain water away from foundations and provides more storage for sudden downpours.
Depave unused hardstanding: Some properties have more hard surface than needed (excess patio, concrete paths, etc.). If you can remove a portion of that and replace it with grass or planting, you are effectively giving the ground back its sponge. A small lawn or garden bed will absorb a lot more rain than concrete. There’s even a movement called “depave” encouraging communities to peel back unneeded pavement and plant instead, which reduces urban runoff.

At the community or street level, retrofitting SuDS might involve neighbors and local councils:

Streetside rain gardens or planters: If your street has wide pavements or verge, residents can work with the council to install curbside rain gardens. This often involves cutting a gap in the curb so road runoff enters a planted verge, and creating a slight depression with hardy shrubs or perennials that can tolerate road salt. Cities like Portland and Seattle pioneered this, but now UK cities (London, Cardiff, Manchester, etc.) have trials where a few parking spaces or curb extensions are converted to rain gardens. These not only manage water, they also slow traffic and green the street. Check if your council has a scheme or funding for community SuDS – some do under flood prevention or climate adaptation programs.
Retrofit permeable parking bays: Some councils have converted sections of street parking to permeable surfaces. Alternatively, collectively, a row of houses might change their frontages. In many British terraces, the front garden has been paved for parking, contributing to drainage issues. Neighbors might jointly agree to use permeable treatments and even coordinate their soakaways, etc. It’s worth noting that since 2008 in England, any new paving of front gardens over 5 square meters requires it to be porous or else get planning permission – this has helped drive retrofits toward SuDS by default.
Local green space conversion: An existing playing field or park can be given a SuDS function by subtle re-landscaping. For example, a hollow could be created to serve as a detention basin in one corner, or a shallow wetland added in a low spot. This usually requires council initiative, but residents can lobby for it, especially if the area has flooding history. There have been projects where, instead of enlarging a storm sewer, the solution was to build a wetland in a park to hold the water – creating a win-win of new wildlife habitat and flood storage.
Downspout disconnection programs: In some places, utilities or councils encourage homeowners to disconnect downpipes from the combined sewer and redirect to gardens or new soakaways, often even providing grants or tools. For instance, Northumbrian Water’s “Rainwise” retrofit program worked with communities in the North East to add SuDS features like raingarden planters and soakaways in people’s gardens, reducing sewer flows. If your area has issues with sewer overflows, it’s worth checking if there’s a local initiative. Even without one, a community of neighbors could band together to do DIY disconnections and share tips – effectively a grassroots SuDS movement on your street.

Retrofitting SuDS is sometimes about changing mindsets and habits too. For example, instead of sweeping leaves into the gutter (where they’ll clog drains), people can compost them – keeping gutters clear is a simple way to help drainage. Or planting more trees in yards: trees are natural SuDS units, catching rain on their canopy and improving soil infiltration with their roots.

Every little action helps. One home adding a rain garden might not stop a flood, but if 30 homes in an area do it, the cumulative effect can be substantial. And beyond the technical impact, there’s a community beauty to it – more greenery, neighbors talking about their new gardens or barrels, a sense of collectively caring for one’s local environment.

Homeowners often find that implementing these features not only gives peace of mind during storms (“my property can handle this”), but also adds personal enjoyment – who doesn’t love watching birds splash in the new rain pond or seeing a formerly flooded corner come alive with flowers?

SuDS in Action: Real-World Success Stories

To ground all this theory in reality, let’s look at a few inspiring case studies where SuDS have been implemented and made a positive difference. We’ll start across the Atlantic in Portland – a city that embraced green stormwater infrastructure citywide – and then highlight two UK examples from the susdrain case study vault, showing SuDS working in our own communities.

Portland’s “Green Streets” – A City and Its Citizens Embrace the Rain

Portland, Oregon (USA) is famous among water engineers as a pioneer of urban green infrastructure. Faced with frequent combined sewer overflows in the 1990s, Portland undertook a massive sewer tunnel project (the “Big Pipe”). But alongside it, the city launched the “Green Streets” program, led by landscape architect Tom Liptan, to attack the problem at the source. The idea was simple yet bold: retrofit the city with hundreds of small-scale SuDS installations – rain gardens, swales, curb extensions, planters, trees, green roofs – to soak up rainwater from streets and roofs, keeping it out of the sewers.

The Green Streets policy explicitly set the goal that “the City of Portland will promote and incorporate the use of green street facilities in public and private development”. And they meant it. Over the years, over 1,000 Green Street sites were built across Portland, managing runoff from about 37 hectares of urban area that used to drain to sewers. The city encouraged residents to disconnect their roof downspouts from the sewer and redirect to lawns or new rain barrels – and people responded en masse. More than 56,000 downspouts were disconnected, including on 26,000+ homes, preventing that roofwater from entering the combined sewer system. The city even offered $53 incentives per downspout in the early days, but what really took off was a sense of collective mission – neighborhoods proudly participated to help “save the river” from sewage overflows.

Portland’s streetscape transformed: where once there were only concrete curbs, now curbside rain gardens with plants flourish. Street runoff that used to surge into drains now pools momentarily in these landscaped basins, then filters into soil. The city planted 3,500 street trees and added numerous vegetated swales. It wasn’t just about big numbers, though – it became a culture. Outreach was huge: educational programs in schools, public art integrated with water (like decorative downspouts), bike tours of green infrastructure sites. The citizens came to understand and support the SuDS ethos, seeing the tangible improvements in their neighborhoods – greener streets, less water ponding, and cleaner rivers.

The impact was dramatic. Thanks in part to Green Streets, Portland was able to reduce its sewer overflow events by an estimated 94% and avoid building larger sewer pipes than originally planned. Essentially, SuDS shrunk the needed “grey” infrastructure. The Willamette River, once infamous for sewage spills, saw far fewer closures due to contamination. The city also found that these green solutions could be cheaper to maintain in some cases than traditional pipes, and they provided benefits beyond drainage – traffic calming, beautification, urban cooling, and increased property values on greened streets.

Portland’s success story has inspired cities worldwide (including many UK cities) to initiate their own green street programs. The take-home message from Portland is that a community-scale SuDS effort can achieve impressive feats: thousands of small interventions adding up to a huge difference, and citizens who feel pride in stewarding their own environment. It’s a perfect example of turning a grey problem into a green opportunity – literally planting the solution in people’s front yards.

Lamb Drove, Cambourne – A Green Neighbourhood Showcase

Lamb Drove is a small residential development in Cambourne, Cambridgeshire, and it holds a special place in UK SuDS history. Built in the mid-2000s, it was a demonstration project aiming to show that a typical housing development could implement SuDS throughout and outperform traditional drainage on all counts. Only 35 homes make up Lamb Drove – affordable homes managed by a housing society – but the ambition was big: to use a “management train” of SuDS and monitor its performance over years.

Walking through Lamb Drove, you’ll notice features that blend into a pleasant residential scene: water butts at each house, permeable paving on the cul-de-sac roads and driveways, a little green roof on a bike shelter, swales running between back gardens, and a series of detention basins and a retention pond in the communal green space. These were all intentionally put in as part of the drainage strategy. Instead of a conventional pipe taking water straight to a sewer, water at Lamb Drove takes a leisurely journey: rain from roofs is captured in butts and used by residents for gardening; any overflow or yard runoff goes into swales or filter strips, which then feed into a pond and wetland area at the end of the development. The permeable pavements let water from the roadway soak into an underground gravel layer, where it is cleaned and either infiltrated or conveyed slowly to the basins.

The results after construction were carefully observed. Not only did the SuDS system work reliably (even in heavy storms it attenuated flows and prevented flooding), but it brought a host of benefits that a normal setup wouldn’t. A study comparing Lamb Drove to a nearby conventional development found that peak runoff rates were significantly reduced – the SuDS site’s discharge was much lower during storm events than the traditional site. Water quality tests showed cleaner water leaving Lamb Drove, with reductions in pollutants like heavy metals, thanks to filtration in the swales and pond. They also surveyed residents and found positive reactions – people liked the look of the sculpted swales and ponds, and any initial worries about safety (open water) were allayed by the very shallow basin design and education (plus ROSPA safety audits). In fact, Lamb Drove’s swales and basins made for an attractive landscape that improved quality of life on the estate. The development won a national planning award in 2006 for this innovative approach.

From a cost perspective, Lamb Drove demonstrated that using SuDS can be cost-effective or even cheaper than pipes. The project achieved an estimated £11k savings (~10%) compared to an equivalent conventional drainage scheme. And because they didn’t need to connect to a distant storm sewer, each house saved around £30 a year on sewer charges. Maintenance was manageable: the housing society and a local Wildlife Trust teamed up to handle routine tasks – monthly checks during the growing season, grass cutting, litter picking, etc., which were folded into normal landscape maintenance. Permeable pavements stayed functional even without council adoption, with the housing society doing simple sweeping to remove debris.

Importantly, Lamb Drove became a teaching tool. They put up an interpretation board on site explaining the SuDS to visitors. The data collected over three years was published and widely cited, helping convince skeptics that SuDS can deliver on promises of flood control, water quality, biodiversity, and amenity – even at small scales.

For homeowners, the Lamb Drove story is encouraging: it shows that even a modest development can implement a whole suite of SuDS affordably, and that residents truly appreciate the greener surroundings. As one might say, they paved the way (or rather un-paved it!) for SuDS in mainstream housing developments across the UK. Places built since often reference Lamb Drove as inspiration, and indeed Cambourne as a whole new settlement has many SuDS features thanks to that early success.

Bridget Joyce Square, London – Transforming a Flood-Prone Street

Bridget Joyce Square is a shining example of retrofitting SuDS into an existing urban area and achieving multiple community benefits. Formerly part of Australia Road in White City, West London, this site was a straightforward but problematic residential street – prone to surface water flooding and a hazardous spot for children crossing between a school and playground. The Counters Creek sewer underneath was also often at capacity, contributing to local flood risk. In 2015, the borough undertook a project to convert this section of road into a shared public space with integral SuDS, and later named it Bridget Joyce Square in memory of a local community campaigner.

The transformation is dramatic. What was once standard tarmac is now an “urban oasis” plaza with wiggly, sculptural design elements and abundant greenery. Key SuDS features include: permeable paving over much of the surface (about 1,320 m² of it), which allows rain to seep through the plaza’s ground; large planted rain garden basins (335 m²) that receive water from the paving and nearby roofs; rain gardens/bioretention areas along the edges (120 m²); and even disconnected downpipes from the adjacent school and community center, which now channel roofwater via above-ground sculptural pipes into the gardens. In essence, the whole square is a water management machine disguised as a park – it can hold a hefty amount of water in the soil and storage layers (over 55 cubic meters) and release it gradually, with flow controls set to a tiny 1 litre/second discharge limit. That’s an incredibly low release rate, ensuring water stays on site much longer and only trickles into the sewer once the storm has passed.

The benefits have been tremendous for the community. Flood risk has diminished sharply – the project’s monitoring indicates that annual runoff volume into the combined sewer is now 50% lower than before. In heavy rains, instead of water pooling on the street and threatening homes, it harmlessly fills the basins and gravel layers under the square. The flow rate leaving is so controlled that the local combined sewer overflow is far less likely to activate, preventing sewage spills. Essentially, Bridget Joyce Square is acting as a big sponge, safeguarding the area and downstream neighborhoods.

On the social side, the square has become a beloved community space. The design incorporated seating, event space, and playful elements (those wiggly walls and sculptural downpipes aren’t just functional; they spark curiosity and play). Children at the adjacent school now have a safer, attractive environment rather than a traffic road. The place is used for fairs, markets, and daily leisure – fulfilling the goal of multi-functionality. Residents report a sense of pride and care; there’s “strong community buy-in” and even reduced antisocial behavior (vandalism is notably low, perhaps because people respect the space and understand its purpose). Educational signage helps locals and visitors learn about SuDS, which is a nice touch for spreading awareness.

Environmentally, the square’s greenery (49 new trees and lots of plants) has improved air quality (helping knock down pollution from vehicles) and created urban habitat. The plants in the rain gardens clean the runoff, removing heavy metals and oils from the roads via filtration and bio-uptake. As it matures, biodiversity is expected to increase – already the site is far greener than it was as plain asphalt.

Maintenance of the square is shared: the school’s caretaker looks after the rain gardens on their property side, and the borough’s highway department maintains the rest (basins, permeable pavement, etc.). Because the SuDS features are all visible, maintenance crews can easily inspect inlets or outlets and ensure they’re clear. The permeable paving was cleverly designed to overlay the old road slab, minimizing construction excavation, and is built to be durable even with occasional heavy vehicles, so it’s expected to last well.

Bridget Joyce Square demonstrates what’s possible in an urban retrofit: turning a flood hotspot into a flagship example of sustainable drainage that also beautifies the neighborhood. It won accolades (including an Engineering Excellence award) and serves as a model for other boroughs. If you ever visit, you might just see children running around the sculptural fountains during rain, marveling at how the water flows from roof to garden visibly – teaching the next generation that rain is something to celebrate, not fear.

These case studies, from large-scale Portland to local UK projects, show that SuDS truly work in the real world. They inspire confidence: whether it’s a whole city or a tiny street, embracing sustainable drainage yields tangible gains – fewer floods, less pollution, more green space, and happier communities.

Conclusion: You Can Be Part of the SuDS Solution

Slowing the flow is not just the job of engineers and councils – it’s something all of us homeowners can contribute to. By making small changes around our homes and gardens, we collectively make our towns and cities safer and more beautiful. SuDS teach us a gentle wisdom: work with water, not against it. Instead of pushing rain away, invite it into your garden with a rain barrel or a blossom-filled dip. Instead of sealing every inch of ground, leave space for the earth to breathe and drink.

In the poetic spirit of writers like Robert Macfarlane and Roger Deakin, we can learn to see rainwater not as a nuisance but as a lifegiving presence – “a messenger from the clouds to the soil,” completing an ancient cycle. SuDS ask us to slow down and watch that journey. Listen to the rain on the roof, then watch it tumble down a chain into your barrel, or spread across your gravel drive, or disappear between the petals of your rain garden flowers. There is a quiet wonder in knowing that, by these simple acts, you are protecting your home and your river downstream – each drop slowed is a drop less in the sewer, a drop cleaner in the brook.

By implementing SuDS, we create a patchwork of thousands of little oases that add up to a profound change. Neighbors might start chatting about the new swale by the road, or the frogs that have taken up residence in the pond that wasn’t there last year. Communities feel empowered when they see that flooding isn’t inevitable doom; we have tools to mitigate it, and they can be as humble as a plant or as fun as a sculpture that plays with rain.

So, whether you’re planning a new build or just tinkering in your yard this weekend, consider giving SuDS a go. Plant that mini meadow in the low corner, lay some porous pavers, or set out a tub to catch the rain. You’ll be joining a growing movement of citizen water stewards.

Together, we can stitch our urban landscape with green threads that soak up the storms. Together, we can ensure that when the heavy rains come, we won’t dread them, but maybe step outside, feel the droplets, and smile – knowing the city is soaking it in stride, and our rivers will run clearer for it. It’s all about slowing down, for the water and for ourselves, and letting nature’s way of drainage guide us to a more sustainable, resilient future.

Sources:

CIRIA Susdrain Case Study – Lamb Drove, Cambourne: Demonstrating SuDS in residential development.
CIRIA Susdrain Case Study – Bridget Joyce Square: London retrofit SuDS scheme outcomes.
The Flood Hub – Simple SuDS for Local People: Introductory guide to SuDS concepts and benefits.
Susdrain SuDS Components: Definitions of swales, permeable paving, etc., and their advantages.
Portland “Green Streets” Outreach Briefing (Susdrain, 2012): Portland’s extensive SuDS retrofit statistics and community engagement.
Royal Horticultural Society – Rain Garden Guide: Benefits and simple description of rain gardens for homeowners.
Susdrain – Detention Basins: Description and usage of dry basins in SuDS.
The Flood Hub – Green Roof Benefits Blog: Stats on green roof runoff reduction and maintenance needs.
UK Government Planning Guidance: Requirement for permeable front driveways over 5 m².
Susdrain Case Study – Queen Caroline Estate: Example of community-scale SuDS retrofit (rain gardens and swales in London).
